• Compressor Wheel: 54*71mm
• Turbine Wheel: 60*55mm
• Compressor Inlet: 3″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet: 0.83 A/R V-Band
• Turbine Outlet: 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN connect to the Oil Restrictor
• Oil Drain: Std T3 Flange
• Water In/Outlet: M14*1.5

Features

• Dual Ceramic Ball Bearing System
• 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel
• Multiple options for turbine housing

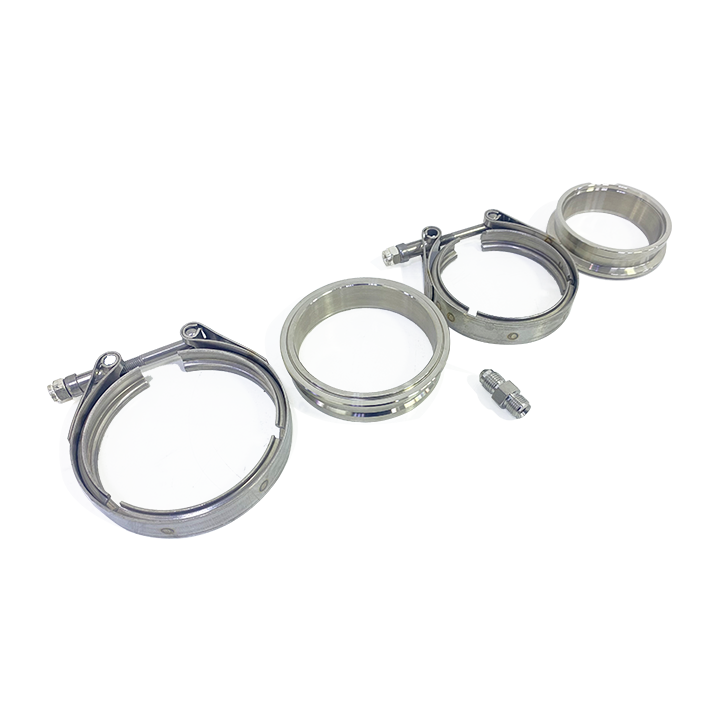

• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP
